Encrypted offgrid text messaging using Meshtastic and LoRa technology. Pair to your phone via Blutooth and text message using the Meshtastic app (available on app stores). The case is custom 3D printed and designed to house a RAK19007 baseboard & RAK4631 core.

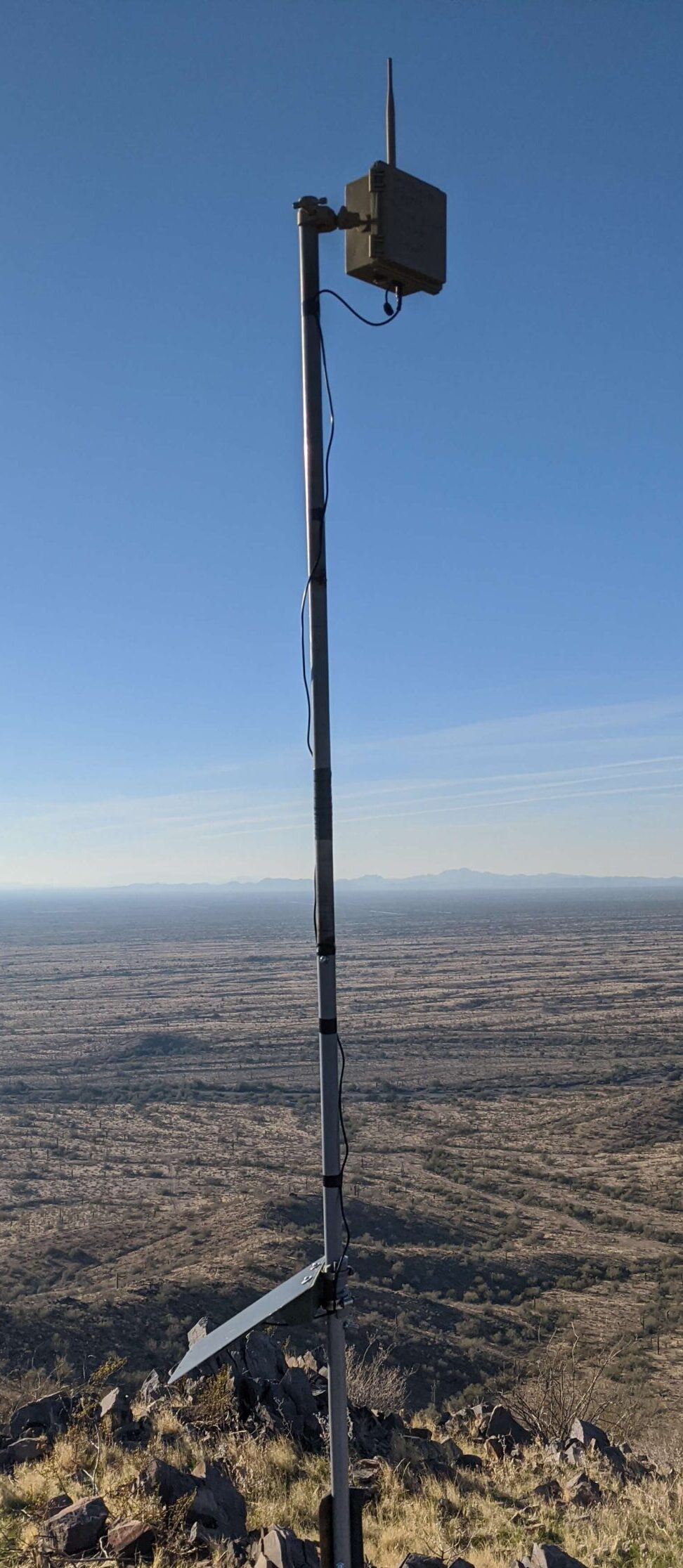

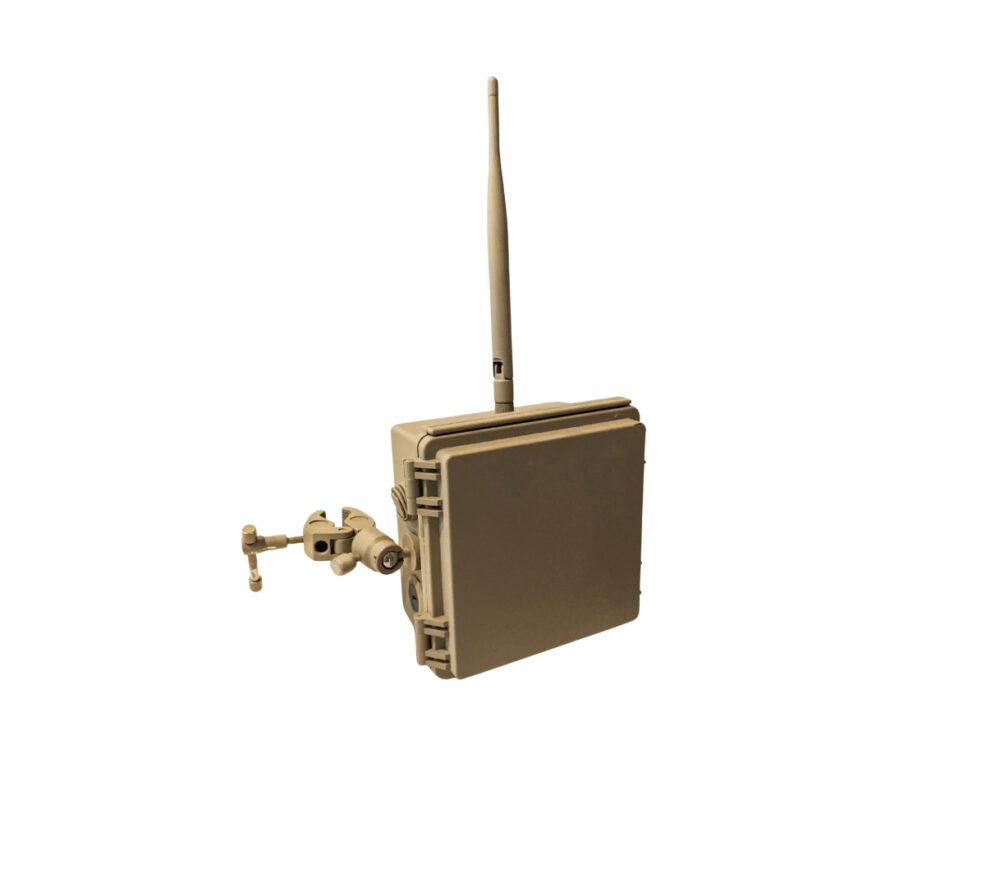

Repeater/Base Station Featires
- Integrated clamp for easy mounting
- Modified Weather Resistant ABS Enclosure
- 10dbi eternal antenna (915mhz) (Can be removed and upgraded)
- 6500 MAH LiPo battery (3-5 day runtime before recharge)
- Solar Panel Included
- Solar Panel Mount
- Optional GPS add-on allow location sharing without phone pairing ($15)
Meshtastic Details
- All communication is AES256 End-to-End Encrypted
- Group chat up to 80 radios
- Direct messages
- No wifi required
- No cell service required
- Long-range record of 254km
- Operates without the need for a dedicated router, making it a truly decentralized communication solution
- Devices are designed to have excellent battery life, allowing for prolonged usage without frequent recharging
- Integrates with ATAK
How Meshtastic Works: Meshtastic utilizes LoRa, a long-range radio protocol that is widely accessible in most regions without the need for additional licenses or certifications. This distinguishes it from HAM radio operations. The radios used in Meshtastic are designed to rebroadcast received messages, creating a mesh network. This network ensures that messages can reach every group member, even those located at the furthest distances. Depending on the settings, the Meshtastic mesh network can support up to 100 devices simultaneously. Furthermore, Meshtastic radios can be paired with a single phone, enabling friends and family to send messages directly to your specific radio. It’s important to note that each Meshtastic device can only support a connection from one user at a time.
Watch the video below for a detailed explanation of Meshtastic.
